The 26m radio telescope at Hartebeesthoek was constructed as an 85' antenna for NASA's Deep Space Station 51 in 1960-1. The photographs below emphasize the polar shaft as the 'spine' of the telescope. It was installed as a pre-assembled unit, weighing 16 tons.
The polar shaft ready for hoisting into place.
Click on the image for large version
The polar shaft being hoisted onto the tripod support structure.
Click on the image for large version
Click on the image for large version
Click on the image for large version
The polar shaft points upwards to the south at an angle of 25.887 degrees - the latitude of the antenna.
Click on the image for large version
Click on the image for large version
Click on the image for large version
Click on the image for large version
The supports for the declination drive gearboxes and motors appear as 'ribs' attached to the polar shaft 'spine'.
Click on the image for large version
Click on the image for large version
Click on the image for large version
Click on the image for large version
Click on the image for large version
Click on the image for large version
Click on the image for large version
Click on the image for large version
Click on the image for large version
The hour angle bull gear being installed. It is attached to the polar shaft.
Click on the image for large version
Click on the image for large version
Click on the image for large version
The completed hour angle bull gear.
Click on the image for large version
The antenna can drive in hour angle (east-west).
Click on the image for large version

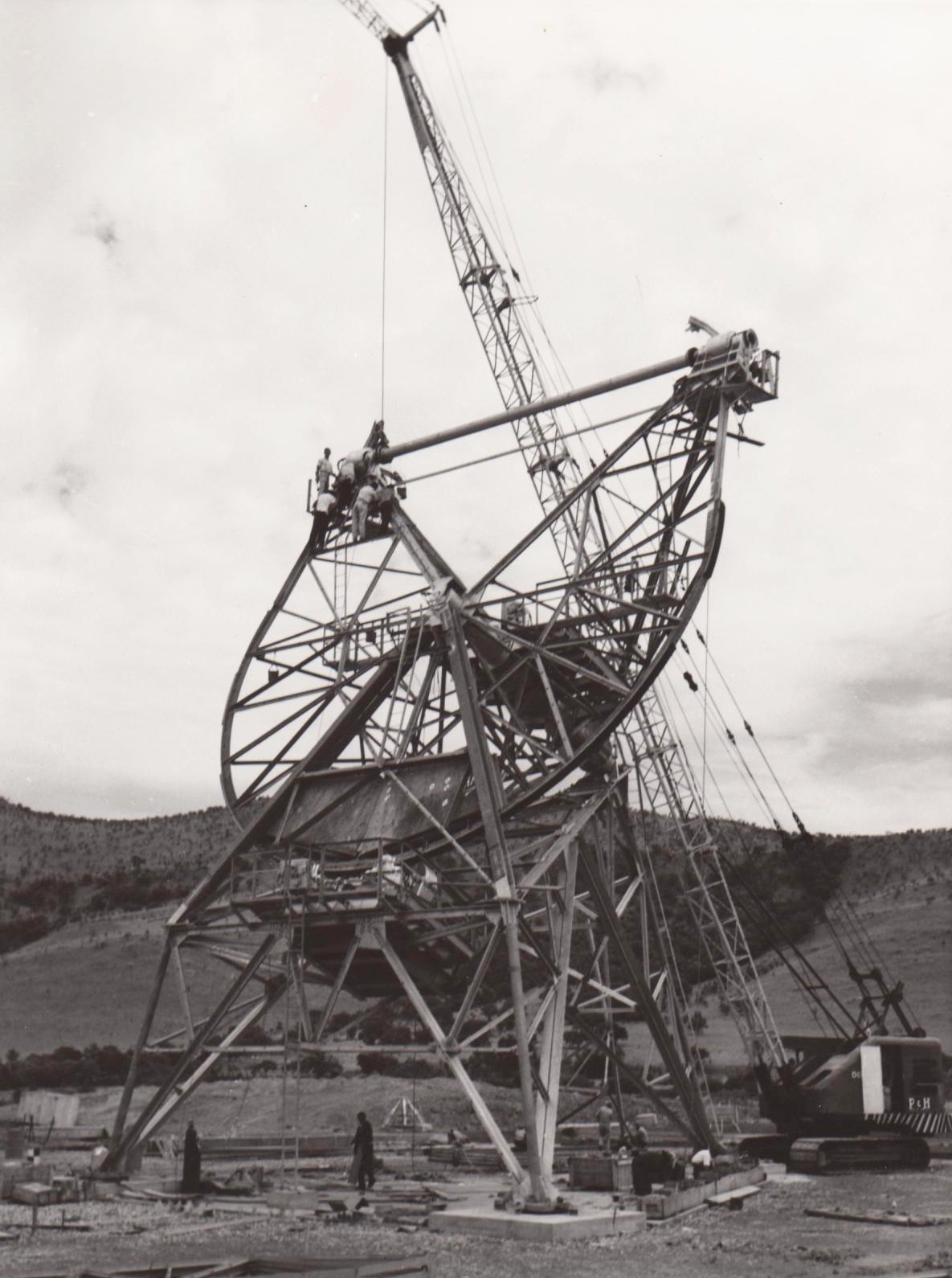

The declination shaft being installed. This provides for north-south motion.
Click on the image for large version
Click on the image for large version
The completed antenna seen from the back. The relatively light structure and mesh surface for operation of a 960MHz receiver at prime focus are evident.
The following pictures were taken in 1968-9 after the antenna was rebuilt as a Cassegrain operating at 2.3GHz. This added significantly to the weight, and the structure was strengthened to support this.
Click on the image for large version
Click on the image for large version
Click on the image for large version
Click on the image for large version
